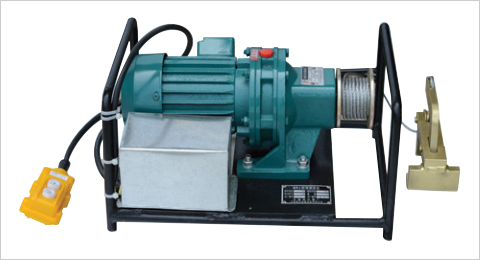

BPJ-type conveyor belt barker

Performance and function
BPJ-type conveyor belt barker is the dedicated electric stripping machine for nylon,canvas,steel core belts before glue connection. This machine could automatically clamp and strip the convered glue layer and cord layer of the belt,which has the effects of strong pull force,largr stripping area and rapid speed,etc.This equipment is simple in operational,safe,reliable,which could greatly reduce the labor strength of the operators.
Basic parameters
SN Name Unit Serial data
ModelⅠ Model Ⅱ
1 Scope of application   canvas/nylon/steel core belts
2 Stripping width once cm 10
3 Rotation speed of the steel rope coil circles/min 24.5
4 Diameter of the wire cable mm 6
5 Steel rope pull force Single rope N 3500
  Dual ropes N 7000   Equipped with single
action pulley
6 Steel rope pull speed Single rope m/s 0.12
  Dual ropes m/s 0.06   Equipped with single
action pulley
7 Motor Model   YS7144
  Voltage V 380
  Power kw 0.75
8 Reducer Model   BWD0-59   planetary cycloid
  Speed ratio   59
9 Specification of power source and cable mm maximal external diameter 11.5   prepared by the user
10 Appearancesize mm 450×310×240   (L*W*H)
11 Gross weight kg 42
